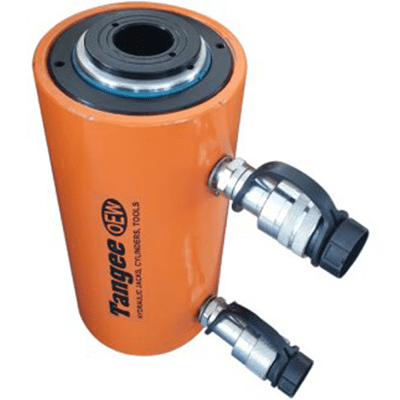

Double Acting Hollow Cylinders

  1. Hollow piston rod design allows for both pull & push forces.
  2. A hollow saddle fitted to the rod is supplied as standard.
  3. Interchangeable threaded hollow saddles are available as optional extras.
  4. Larger central holes can be made on request.
  5. Hard chrome plated steel piston rod.
  6. These cylinder are oil return.They are suitable for quick retracing and for horizontal, vertical and inverted operations.
  7. Collar threads and base mounting holes enable easy fixturing (except YS 250100, YS300200, YS350200, YS500200).
  8. Relief valve prevents damage in case of over-pressurisation.
  9. Stop ring provided on all models.
  10. Female half coupler & dust cap provided on all models.
  11. Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets.
  12. All variations are possible on request, subject to confirmation from the dealer.
CAPACITY10 TON TO 500 TON
STROKE100 MM TO 300 MM
CENTRE HOLE DIA19.5 MM TO 120 MM
TYPE OF RAMHOLLOW

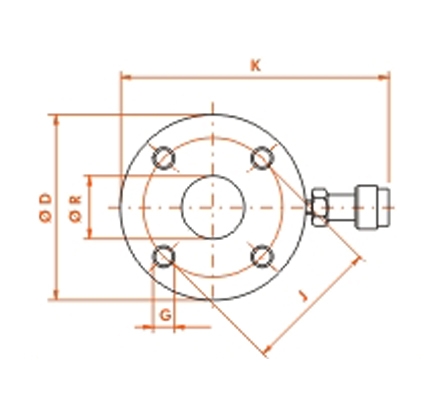

Mechanical Drawings

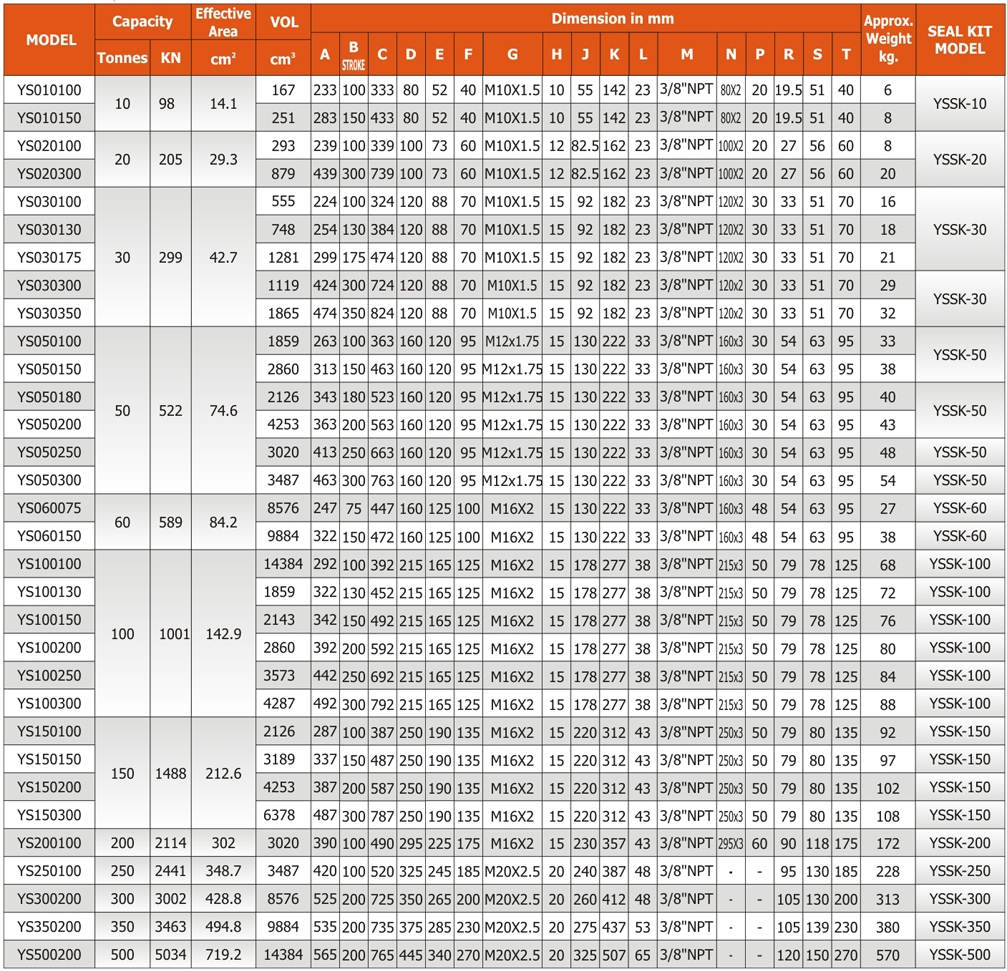

Dimensions Chart
