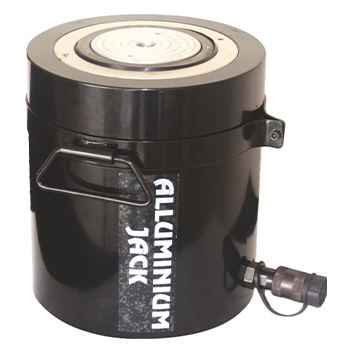

Single Acting Light Weight Aluminium Cylinders Spring Return (700Kg/Cm2)
- Steel base plate and grooved saddle for larger durability
- Hard coated piston rods and cylinder bore to increase cylinder life
- Composite wear rings to prevent metal to metal contact
- Gland nuts provided for protection against over travel of plunger
- Female half coupler & dust cap provided on all models.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer
- Double Acting / Hollow Ram / Single acting with threaded Ram version also available
| CAPACITY | 20 TON TO 200 TON |
|---|---|
| STROKE | 50 MM TO 150 MM |
| TYPE OF RAM | PLAIN |
Mechanical Drawings
Dimensions Chart
