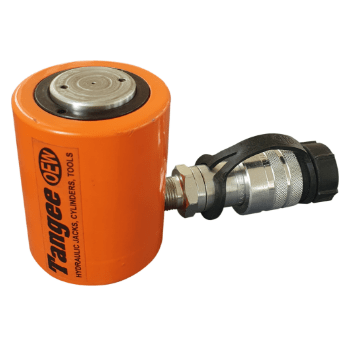

Single Acting Low Height Cylinders Spring Return (700Kg/Cm2)
- Light weight, low profile design for use in confined spaces.
- Hard chrome plated steel piston rod.
- Stop ring provided on all models.
- Female half coupler & dust cap provided on all models.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 10 TONNE TO 90 TONNE |
|---|---|
| STROKE | 38 MM TO 62 MM |
| TYPE OF RAM | PLAIN |

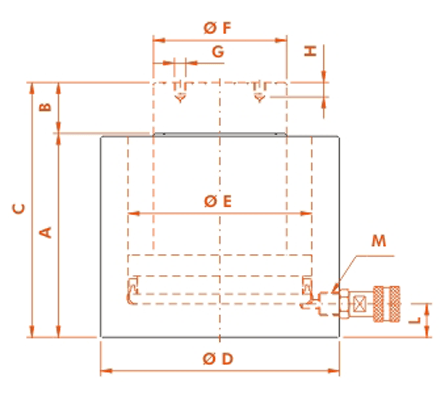

Mechanical Drawings

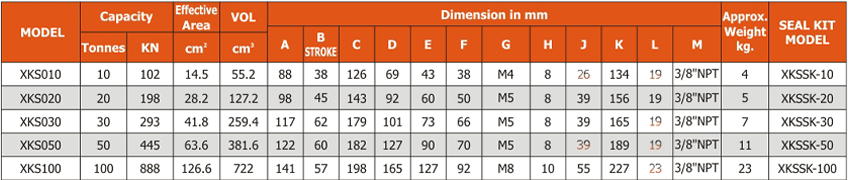

Dimensions Charts
